MTConnect Agent for Fanuc CNC Equipment using Focas over Ethernet

Configurator

FANUC driver. The com.eurotech.addons.esf.fanuc.driver package provides a Driver that allows to read CNC diagnostic data and parameters using the Wires and Asset models. The driver depends on the com.eurotech.addons.esf.fanuc.core bundle. The driver configuration allows to specify the IP address and port of the CNC to connect to. Silhouette connect illustrator cc 2019. The driver channel configuration is composed of the following. Fanuc cnc software free download. CAELinux CAELinux is an installable live DVD Linux distribution dedicated to open source engineering with a f. CAELinux is an installable live DVD Linux distribution dedicated to open source engineering with a focus on Computer Aided Engineering and Scientific Computing.

The Configurator provides a user interface to configure and manage the MTConnect Agent and Adapters. The Agent is setup during install and each Adapter can be added/removed using the Configurator. When a device is added, the appropriate adapter is installed, the adapter is added to the agent.cfg file, and the Device is added to the devices.xml file.

Agent

The agent is based on the cppagent project available at https://github.com/mtconnect/cppagent.

Adapters

The adapters are based on the Fanuc adapter that is part of the project available at https://github.com/mtconnect/adapter/tree/master/fanuc.

Installation

Compatible with 0id and 30i Fanuc Controllers supporting Fanuc Focas over Ethernet

Installation requres Administrator privileges and may display UAC dialogs which must be accepted throughout the installation process

Step 1

Download the latest Release and run the installer executable on a PC networked to the Fanuc Controller. Select the directory to install the Agent (typically the default path is acceptable) and click Next.

Step 2

Select the name of the Start Menu directory to create shortcuts in (typically the default is acceptable) and click Next.

Step 3

Confirm the installation setup and click Install to proceed with the installation.

Step 4

Confirm that the check box to 'View Fanuc-MTConnect-Agent-Configurator.exe' is checked and click Finish.

Step 5

The Configurator will open with the MTConnect Agent options at the top of the window. At this point, no Fanuc Adapters are installed. To install a Fanuc Adapter, click the Add Device button.

Step 6

The Add Device dialog will open with the list of available controller types on the left side. Click the controller type matching the Fanuc control you are connecting to.(Note: controller types are listed by 'family'. For example, a 31i controller would use the 30i Adapter)

Step 7

Enter the IP Address of the Fanuc Controller. You can also enter in descriptive information about the machine in the fields provided which will be added to the MTConnect Device Header. Once the information is entered, click Add.

Step 8

The Device will now appear in the list on the Configurator window and should be displaying the 'Changing' status. The Adapter for the device is installed as a Windows Service and the Configurator monitors and controls the service.

Step 9

Once the status for the newly added Device changes to 'Started', the Agent is ready to be used and can be accessed using a web browser (Firefox, Chrome, IE, etc.) by navigating to 'http://127.0.0.1:5000/current'. Once all of the devices needed are setup, you can close the Configurator window.

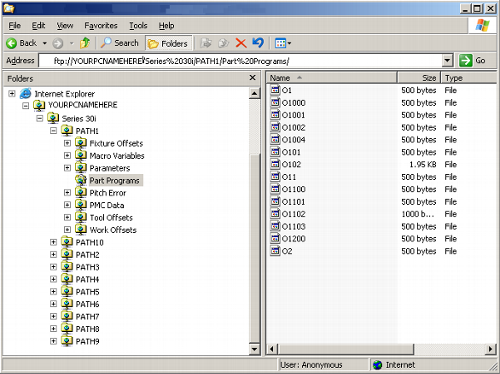

This device driver provides a data exchange connection between OPC/DDE Clients and Fanuc CNCs in the i series supporting TCP/IP Ethernet connections. It is intended for use with Focas1 Programmable Logic Controllers and the i series of CNC controls. This driver will not be able to communicate with your devices unless the FANUC Open CNC FOCAS1/Ethernet Libraries Edition 1.5 or higher is installed on your system. You may still use this driver to create projects without the library installed.
Note: The Focas libraries must be purchased from Fanuc (call 800-GEFANUC, choose CNC, PARTS to place your order.)

Product documentation included in demo download shows addresses that can be accessed using this driver for each device type supported.

This driver also supports our NIC Selectability feature that lets you control and specify which network card to use in your PC when multiple cards are present.
